Safe city, large-scale factory, intelligent transportation, on-board system, airport port, oil depot, security department, prison, water conservancy and electric power, energy mining, ecological protection, administrative law enforcement, fishery and sea surveillance, border defense and other night vision monitoring fill light.
Border, coastline, and critical infrastructure security surveillance
Industrial inspection, semiconductor manufacturing, and high-end machine vision
Forest fire prevention, environmental monitoring, and emergency rescue
LiDAR, laser ranging, and low-light scientific imaging

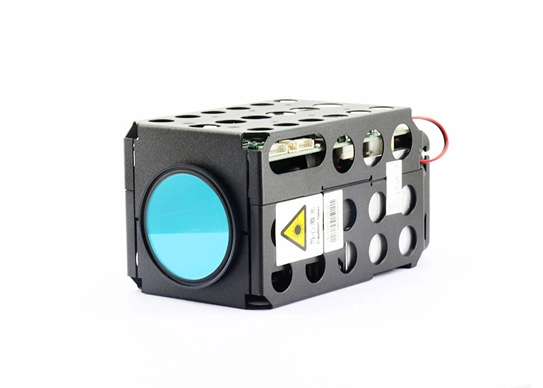

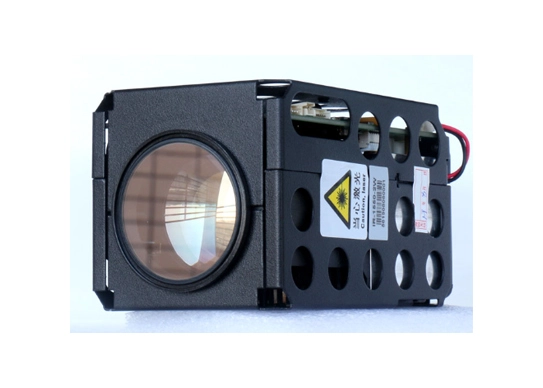

Our 1550nm laser illuminator delivers exceptional performance for SWIR camera systems. This Class 1 eye-safe module provides clear imaging at 500+ meters with superior penetration through smoke, rain, and haze.
Key Advantages:
Zero red-light emission for completely covert operation
90% light utilization efficiency with intelligent thermal control
Narrow, uniform beam with strong ambient light resistance
Auto-brightness and sync-zoom capabilities
Maintains stable performance in adverse conditions
Certified to IEC, CE, RoHS, and REACH standards.
This professional solution ensures reliable imaging where conventional vision systems fail, making it ideal for demanding applications requiring both performance and safety.
Optical and Electrical Parameters
Parameters | IR-1550-2W-00 |
Product Type | SWIR Laser IlluminationModule |
Product Name | IR-1550-2W-00 |

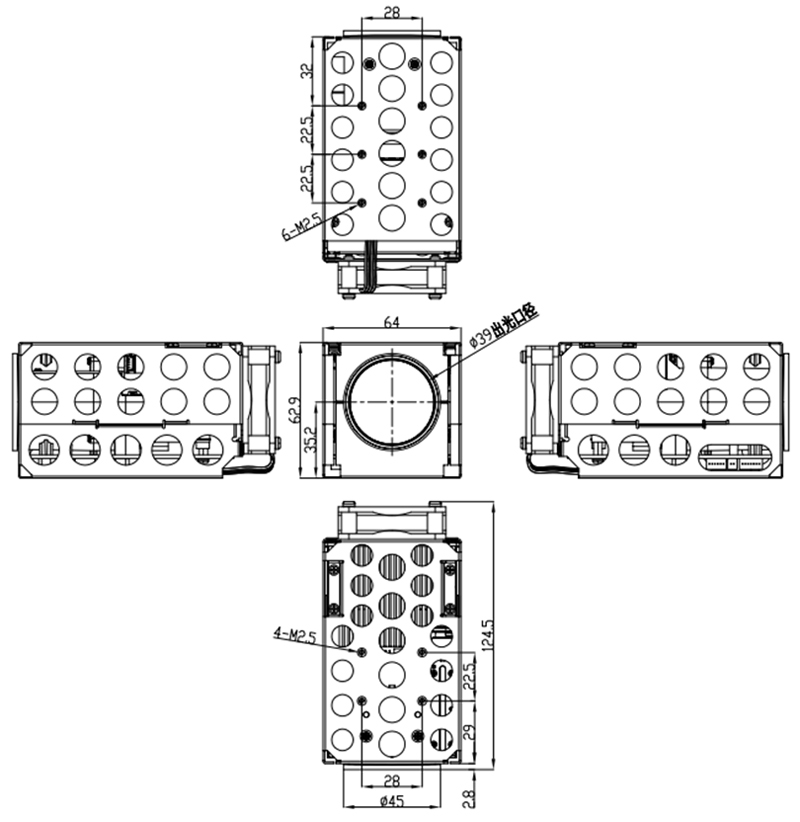

Size | L*W*H：128*65*66mm |
Weight | ≈400g |
Input Voltage | DC 12V±10% |
Input Current | 1.2A±0.2A |
Initialization Time | <3s (From Tele To Wide) |
Consumed Power | ≤20W |
Output Optical Power | 2.0±0.2W |
Laser Wavelength | 1550±15nm（@25℃） |
IlluminationAngle | 1.0°~40°(Continuous zoom) |
Spot Diameter | φ8.8m (@1°,@500m) |
LongestIllumination Distance | ≥500m |
Communication Interface | RS-485/UART portTTL(Default: 38400bps) |
Communication Protocol | Pelco_D |
Operating Mode | Continuous Working Mode |
Operating Life | ＞10000H |
Storage Temperature | -20℃~+50℃ |
Operating Temperature | -20℃~+55℃ |
