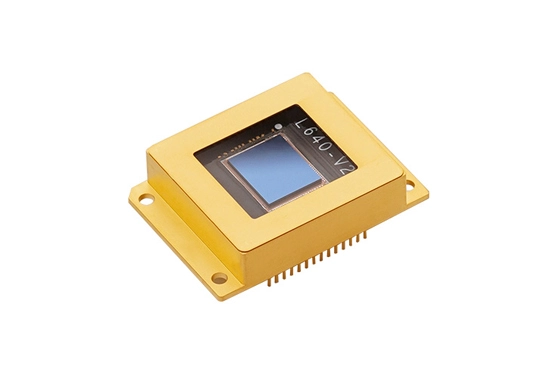

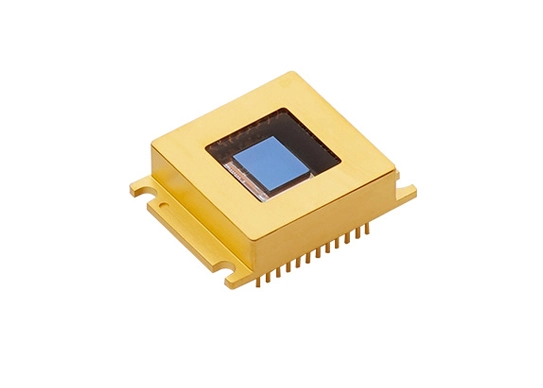

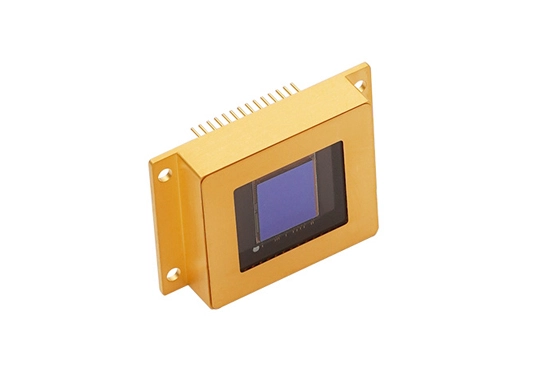

The GH-SW640Pro SWIR sensors include an innovative InGaAs area image sensor, resulting in remarkable high-resolution imaging. These SWIR sensors are built with a cutting-edge read-out integrated circuit (ROIC) to ensure maximum performance and precision.
The ingaas linear image sensor can be offered in two types of metallic packages: nitrogen and vacuum, both of which incorporate a thermoelectric cooler.
It is highly suited for a wide range of applications, including surveillance, hyperspectral imaging, remote sensing, machine vision, industrial sorting, process inspection, and science.
Array Format: 640x512
Pixel Pitch: 15μm
Spectral Response: 0.9µm-1.7µm / 0.4um-1.7µm (optional)
packages: nitrogen and vacuum
Low dark current
High quantum efficiency
High operability
| SENSOR | GH-SW640Pro |
| Material | InGaAs |
| Array Format | 640x512 |
| Pixel Pitch | 15μm |
| Spectral Response | 0.9µm-1.7µm |
| 0.4um-1.7µm (optional) | |
| Integration Type | Snapshot |
| Readout Modes | ITR, IWR, CDS |
| Integration Time | 0.2μs to full frame |
| Frame Rate Max | 300Hz |
| Maximum Pixel Rate | 18MHz |
| Output Swing | ≤2V |
| Temperature Sensor | Yes |
| Quantum Efficiency | >70% (1.0µm -1.6µm ) |
| Readout Noise | 18e- @HG |
| Dark Current | 30fA@0.1V&18℃ |
| Pixel Operability | > 99.5%(Minimum) |
| Non Uniformity | < 5% |
| Dimensions | 36 × 25.4 × 7.2mm |
| Window Material | Quartz/ sapphire |
| No.of Pin | 28-pin Metal DIP Package |
| Packaging Type | Hermetically sealed |
| Operating Temperature | - 40℃ ~ 70℃ |
| Storage Temperature | - 40℃ ~ 70℃ |
