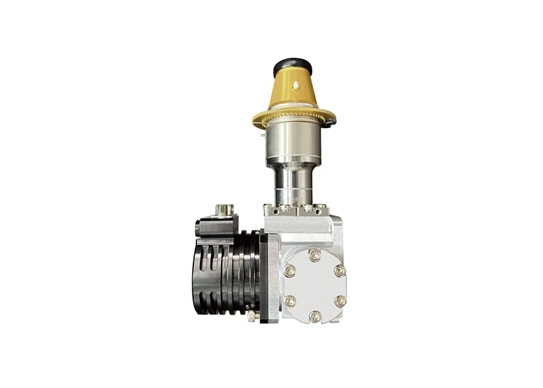

MWIR 1280 x 1024 Focal Plane Array Detector AS-ML1280P15

Get the advanced capabilities of the MWIR 1280 x 1024 Focal Plane Array Detector (AS-ML1280P15) from Syto Photonics, a high-resolution T2SL detector designed for precision infrared imaging. Leveraging state-of-the-art Type-II Superlattice (T2SL) technology, this detector delivers outstanding thermal sensitivity and image quality in the mid-wave infrared (MWIR) spectrum. With a resolution of 1280 x 1024 pixels and a 15μm pixel pitch, it is ideal for demanding applications in defense, aerospace, industrial monitoring, and scientific research. The AS-ML1280P15 offers superior performance in detecting subtle heat signatures with accuracy and speed, making it a trusted solution for professionals seeking cutting-edge infrared detection. Experience the next generation of MWIR sensing with Syto Photonics' T2SL detector technology.


Specifications of MWIR 1280 x 1024 Focal Plane Array Detector AS-ML1280P15

Product Model

AS-ML1280P15

Photosensitive Material

Type Ⅱ superlattice

Response Wavelength Band

3.7±0.2 ~ 4.8±0.2 um

Array Size

1280 x 1024

Pixel Pitch

15 um

Operating Temperature

80 K

Cooling Time

≤ 7 min

F#

4,Customizable

Operating Mode

Snapshot made, ITR/WR, Window readout mode, Anti-blooming mode

Response Non-uniformity

< 8%

Operability

≥ 99.5%

Typical NETD

≤ 20 mk

Power Supply

24V/DC

Size (mm)

153 x 77.5 x 55.5

Weight

≤ 720g

Temperature Range

-45℃~71℃
