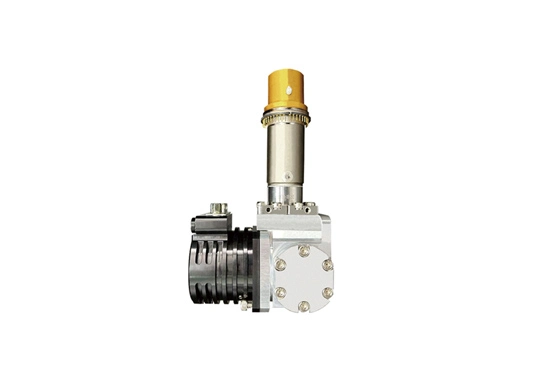

The LWIR 640 x 512 focal plane array sensor (AS-LW640P15), featuring a t2sl detector, from Syto Photonics offers exceptional infrared detection capabilities for a wide range of applications. With its 640 x 512 pixel resolution, this advanced detector delivers superior sensitivity and clarity in the long-wave infrared (LWIR) spectrum. Perfect for thermal imaging, security systems, and industrial monitoring, the AS-LW640P15 ensures precise and reliable thermal data, making it an ideal choice for both commercial and military applications. This focal plane array sensor excels in capturing fine thermal details, providing high-quality imagery even in challenging environments.
Product Model | AS-LW640P15 |
Photosensitive Material | Type Ⅱ superlattice |
Response Wavelength Band | 7.7±0.2~ 10±1 um |
Array Size | 640x512 |
Pixel Pitch | 15 um |
Operating Temperature | 80 K |
Cooling Time | ≤ 5.5 min |
F# | 2,Customizable |
Operating Mode | Snapshot made, ITR/WR, Window readout mode.Anti-blooming mode |
Response Non-uniformity | < 5% |
Operability | ≥ 99.5% |
Typical NETD | ≤ 25 mk(F#2,ITR) |
Power Supply | 24V/DC |
Size (mm) | 148 x58 x71 |
Weight | ≤ 600g |
Temperature Range | -45℃C~71℃C |
