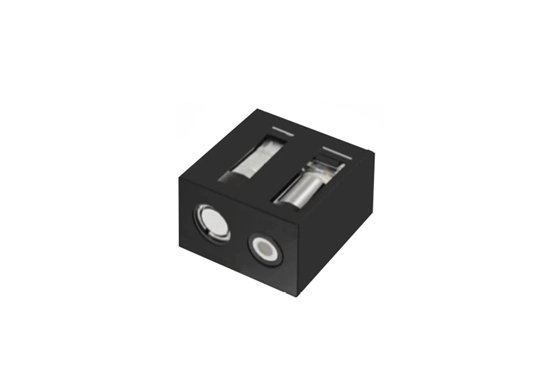

The AS-MW640P1 from Syto Photonics is a high-performance HOT MWIR 640 x 512 focal plane array detector powered by advanced Type-II Superlattice (T2SL) technology. Designed for superior sensitivity and thermal resolution, this compact t2sl detector offers exceptional image quality in the mid-wave infrared spectrum. With a 15μm pixel pitch and fast frame rates, it’s ideal for demanding applications in defense, aerospace, industrial monitoring, and scientific research. Whether you're detecting subtle heat signatures or integrating into complex infrared imaging systems, the AS-MW640P1 delivers reliable and accurate MWIR performance under harsh conditions.
The AS-MW640P1 is a high-performance HOT MWIR detector utilizing advanced Type-II Superlattice technology. This compact 640×512 FPA delivers superior sensitivity and thermal resolution with 15μm pixel pitch.
Advanced T2SL structure for enhanced quantum efficiency
High-resolution imaging with fast frame rate capability
Reliable performance in harsh environments
Suitable for high-speed thermal scene capture
Optimized for high operating temperature
Defense systems, aerospace monitoring, industrial inspection, and scientific research.
Ideal for integration where precision thermal imaging and robust performance are critical.
Product Model | AS-MW640P10 |
Photosensitive Material | Type Ⅱ superlattice |
Response Wavelength Band | 3.7±0.2 ~ 4.8±0.2 um |
Array Size | 640 x 512 |
Pixel Pitch | 10 um |
Operating Temperature | 150 K |
Cooling Time | ≤ 4 min |
F# | Customizable |
Operating Mode | Snapshot made, ITR/WR, Window readout mode, Anti-blooming mode |
Response Non-uniformity | < 5% |
Operability | ≥ 99.5% |
Typical NETD | ≤ 20 mk (F#4) |
Power Supply | 24V/DC |
Size (mm) | 60 x 65 x 45 |
Weight | ≤ 300g |
Temperature Range | -45℃~71℃ |
