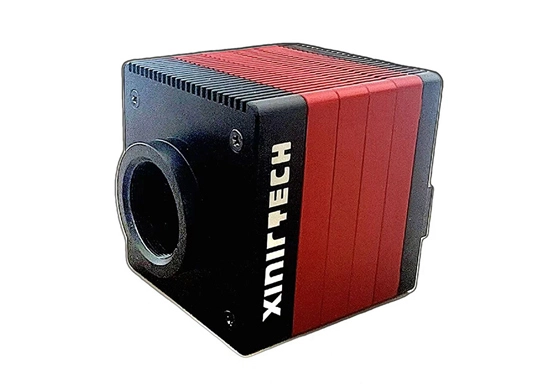

This SWIR (Short-Wave Infrared) camera features an advanced CQD SWIR detector embedded as its core optoelectronic sensor. Based on colloidal quantum dot (CQD) technology, this SWIR detector enables efficient information detection across a spectral range from 900 nanometers to 2000 nanometers. The CQD SWIR sensor camera offers a resolution of 640×512, ensuring high-definition, detailed image capture. Additionally, the system is equipped with a precision temperature control mechanism, providing stable acquisition and output of infrared light signals and guaranteeing long-term operational stability and performance.
Model | ZXRC-SW640-F15 SWIR Detector |
Detector Type | Colloidal Quantum Dot |
Image Format | 640×512 |
Pixel Pitch | 15μm |
Spectral Band | 0.9μm~2.0μm |
Effective area | 9.6×7.68mm |
Frame Rate | 20fps |
Exposure Time | 0-20ms Manually adjustable |
Digital Interface | DC6V、Micro-B USB3.0 Interface |
Power Supply Voltage | DC6V/3.33A |
Power Consumption | 5.5W（TEC on） |
Lens Mount Types | C-Mount |
Operating Temperature | -30~50℃ |
Operating Humidity | <80%R |
Control Software | Custom-developed software with customizable basic functions. |
OS | Windows 7/10/11 32/64bits，Ubuntu Linux，NIVIDA Jetso |
SDK | Support C++/C#/Python |
Liquid and Plastic Sorting/ PCB Inspection/ Traffic Monitoring/ 5km Target Observation
Fog penetration application

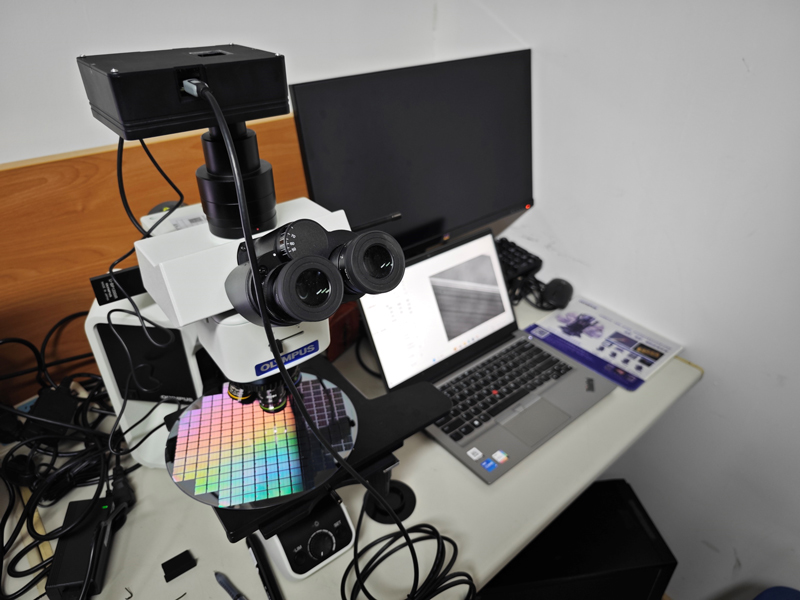

Wafer Inspection
The additional accessories of this high quality infrared camera include:
1. 25mm focal length SW lens.
2. USB 3.0 cable.
3. 6V-3.33A power adapter.

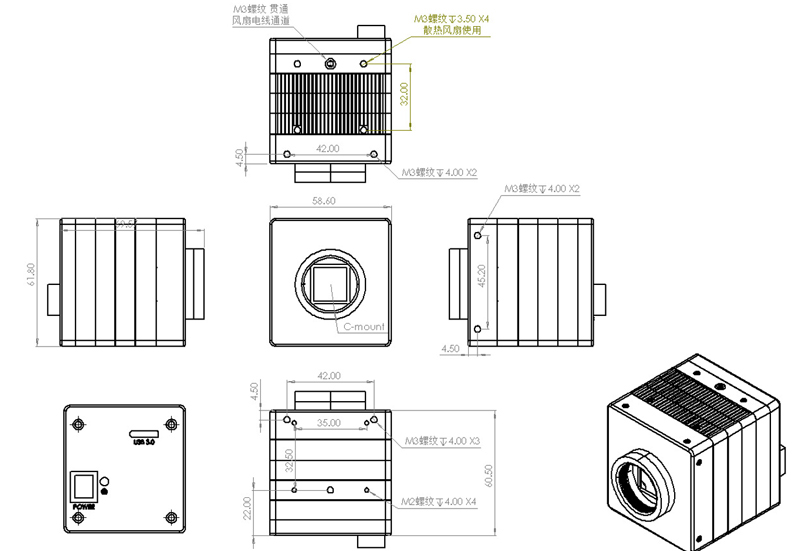

Camera Appearance
